Choosing the Right Windlass for your Anchor:

An anchor windlass is an essential piece of equipment that simplifies the task of raising and lowering your anchor, ensuring convenience and safety. Whether you own a fishing boat, power cruiser, or sailboat, an anchor windlass can save time and effort while reducing physical strain. This guide provides an in-depth look at selecting the right anchor windlass, considering factors like pulling power, compatibility, installation, and the differences between windlass types.

Why an Anchor Windlass is Essential

An anchor windlass streamlines anchoring operations, enabling boaters to quickly deploy and retrieve their ground tackle. Without one, lifting an anchor by hand can be labor-intensive and potentially unsafe, especially in rough conditions. By automating this process, a windlass helps you maintain control and reduce wear on your back and your boat’s components. For offshore trips or frequent anchoring, the reliability of an anchor windlass becomes even more critical.

Understanding the Windlass Pulling Power

The pulling power of an anchor windlass is a crucial consideration. It determines how effectively the windlass can handle the weight of your anchor and rode under varying conditions. An anchor windlass should not be used to drag a boat against strong winds or dislodge deeply set anchors. Instead, it is designed to lift the anchor and rode that are not under heavy strain.

Manufacturers recommend that an anchor windlass’s maximum load capacity be four times the combined weight of your anchor, rode, and associated hardware. For example, a 30-foot boat with a 22-pound anchor and 200 feet of rode would need an anchor windlass with a pulling capacity of at least 248 pounds. If your boat is heavy, has high windage, or uses a heavier anchor, selecting a higher-capacity model is advisable. For more on calculating ground tackle requirements, consult the American Boating Association’s anchoring resources.

Windlass Types and How to Choose the Right One

Anchor windlasses come in two main configurations: vertical and horizontal. Choosing between these types depends on your boat’s design, anchor locker configuration, and anchoring preferences.

Vertical Windlasses

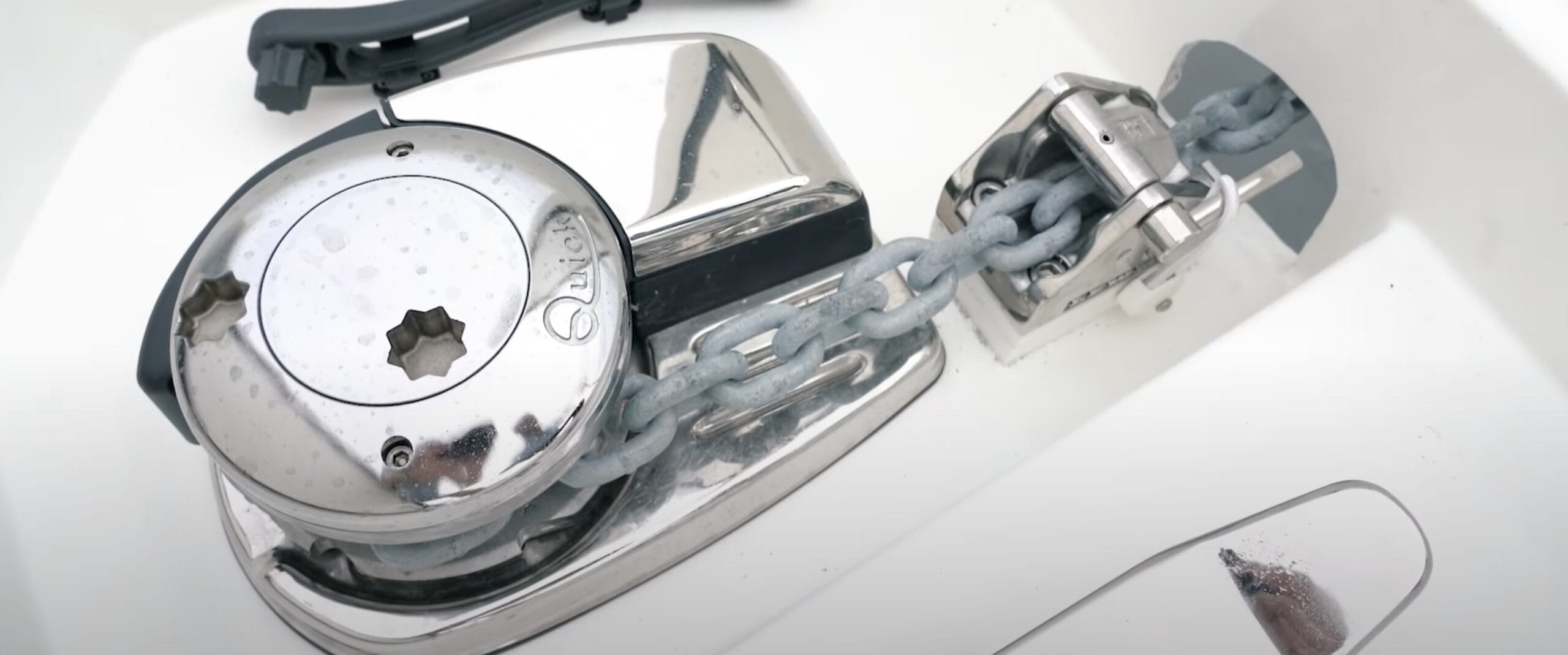

Vertical windlasses are a popular choice for their low-profile design, as most of the unit is installed below deck. This design minimizes exposure to the elements, increasing the longevity of the motor and other components. Vertical windlasses require a deeper anchor locker with sufficient “fall”—the distance between the top of the locker and the rode when fully stored. They are ideal for boats with spacious chain lockers and are commonly used on larger vessels. The rode wraps 180 degrees around the gypsy, ensuring a secure grip and smooth feeding into the locker.

Horizontal Windlasses

Horizontal windlasses are mounted entirely on deck, making them easier to install and maintain. They are well-suited for boats with shallow or uniquely shaped anchor lockers, as they require less fall—typically around 12 inches. However, horizontal windlasses are more exposed to water and weather, which may require additional maintenance. They are a practical option for smaller boats or those with limited below-deck space.

When choosing between vertical and horizontal windlasses, consider the depth of your anchor locker, available space on the foredeck, and your typical anchoring conditions. Both types offer reliable performance when matched to the boat’s design and usage.

Choosing a Windlass Based on Anchor Rode

The compatibility of an anchor windlass with your anchor rode is another critical factor. The rode may consist of all-chain, a combination of rope and chain, or rope only.

• All-Chain Rode: Preferred by cruisers for its strength and abrasion resistance, all-chain rode provides excellent holding power. Anchor windlasses designed for all-chain setups have gypsies with chain pockets that grip the links securely. While heavier and more expensive, all-chain rode is ideal for boats anchoring in challenging conditions.
• Rope-Chain Rode: Combining flexibility and strength, rope-chain setups are versatile for recreational boaters. A spliced connection between the rope and chain is required, which must be inspected regularly for chafing. Anchor windlasses with rope-chain gypsies handle both materials smoothly, making them a practical choice for mixed conditions.
• Rope-Only Rode: Some anchor windlasses are designed specifically for rope rode, using capstans to haul the rope manually. While this option is lightweight and cost-effective, it may not provide the same level of reliability as all-chain or rope-chain configurations.

Ensure that the windlass gypsy is compatible with the specific size and type of your rode. For example, gypsies designed for 5/16-inch High Test chain may not accommodate 5/16-inch BBB chain, which has different link dimensions. For detailed guidance on anchor rodes, refer to the National Safe Boating Council’s anchoring tips.

Installation Considerations

Installing an anchor windlass requires careful planning to ensure proper alignment, wiring, and anchoring. The depth and design of your anchor locker may necessitate modifications to accommodate the windlass and rode. Vertical windlasses typically require a larger deck hole for the motor, while horizontal models are easier to install with minimal below-deck intrusion.

Use marine-grade wiring and connectors to reduce the risk of corrosion and ensure reliable operation. Proper alignment is critical, especially for horizontal windlasses, as off-center rodes can cause jams or uneven wear. Reviewing manufacturer installation guides and consulting reputable resources like BoatUS can help ensure a successful installation.

Additional Features and Accessories

Modern anchor windlasses come with various features and accessories to enhance their functionality and ease of use. Remote operation is a valuable option, allowing you to control the windlass from the helm or other locations on the boat. Deck-mounted foot switches and handheld remotes provide flexibility for different anchoring scenarios.

Accessories such as chain stoppers, cleats, and anchor rollers can improve the efficiency and safety of your anchoring system. Regularly inspecting and maintaining these components ensures they remain in optimal condition.

A Reliable Tool for Safer Boating

An anchor windlass is more than a convenience—it’s a critical tool for safer and more efficient boating. By understanding your boat’s needs and choosing a windlass that matches your ground tackle, anchoring conditions, and design, you can ensure smooth and reliable performance. Whether you opt for a vertical or horizontal windlass, proper installation and maintenance will keep your anchoring system ready for any challenge. For more insights into anchoring best practices, visit the U.S. Coast Guard’s Boating Safety Division.
